Milling machine

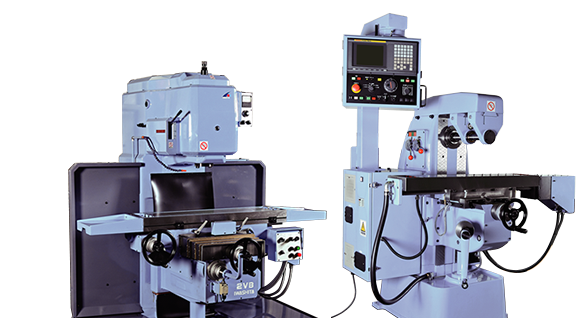

2# Milling machine (Knee type)


Name	2VB	2RC	2HB
Table size（mm）	1100×280	1100×280	1100×280
Longitudinal travel（mm）	700	700	700
Cross travel（mm）	300	300	300
Vertical travel（mm）	400	400	400
Spindle speed（min-1）	L 30〜450 H 451〜1800	L 40〜535 H 536〜4000	90、130、180、265、370、520、715、990、1400
Spindle taper	7/24 Taper NT50	7/24 Taper NT40	7/24 Taper NT50
Spindle motor（kw）	AC Spindle motor 3.7/7.5	Inverter motor 4P×2.2	4P×3.7
Machine size（mm）（W×D×H）	1800×2140×2050	1800×2100×2250	1800×2000×1640
Machine weight（kg）	3000	2500	2500
Power supply（KVA）	19	10	11
Floor space（mm）（W×D）	2500×2140	2500×2250	2500×2000
Standard specifications		・Digital scale two-axis (front and back, left and right) ・Left and right, front and back fine movement feeder ・Rear fence ・Under chip pan
Standard accessories	・A tool box and standard tool kit ・One set of cutting oil device ・Four pieces of leveling plates ・leveling bolt one set	・A tool box and standard tool kit ・One set of cutting oil device ・Four pieces of leveling plates ・leveling bolt one set	・A tool box and standard tool kit ・One set of cutting oil device ・Four pieces of leveling plates ・leveling bolt one set
Option	・ Digital scale 2 axis ・ Digital scale 3 axis ・ Right and left, back slight shock feeder in front ・ Rear fence ・ Under tip bun ・ It is a splash guard in a table ・ Top and bottom cutting feeder ・ Tool automatic putting on and taking off device ・ Lighting ・ The specified color	・Digital scale added (up and down) ・Table on the splash guard ・Lighting lamps ・Specified color ・Up and down cutting feed device ・Before and after the movement amount 150mm extension meter 450mm ・Automatic tool removable device ・Raging block 100mm ・Raging block 200mm	・Digital scale 2-axis ・Digital scale 3-axis ・Left and right, before and after fine movement feeder ・Rear fence ・Under-chip pan ・Table on the splash guard ・Up and down cutting feed device ・Lighting lamps ・Specified color
